QUINT-PS-100-240AC/48DC/10

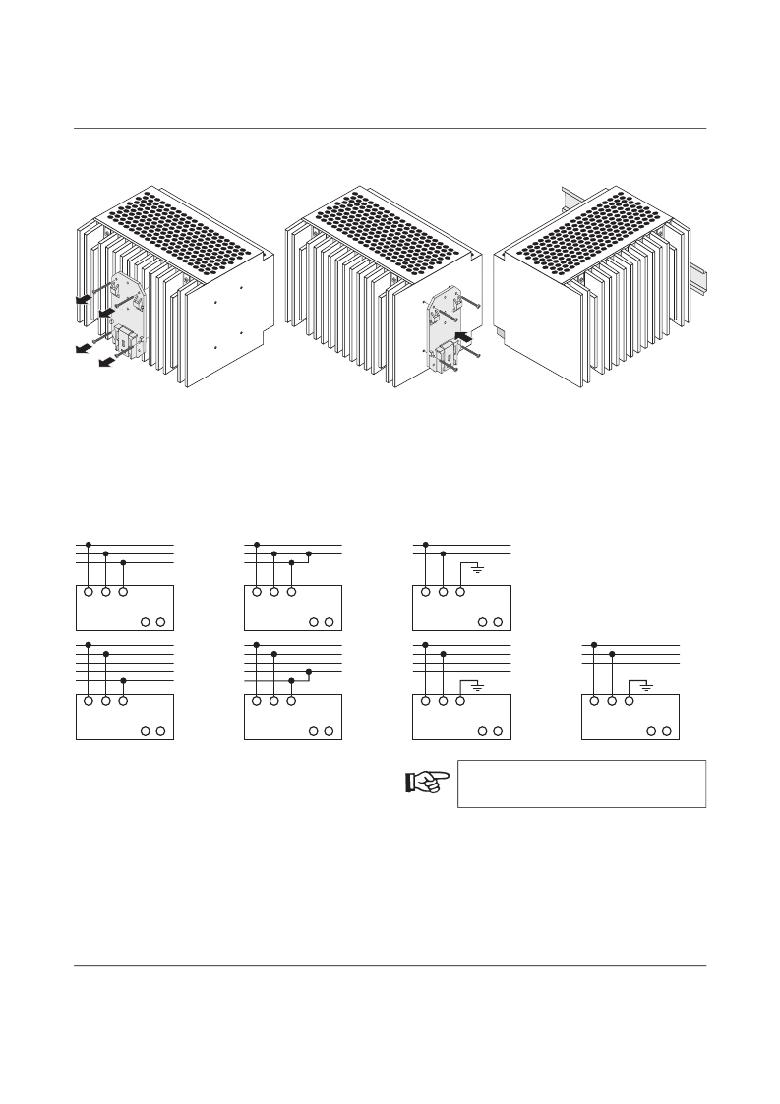

Slim-style installation:
Slim-style installation can be achieved by mounting the device at right-angles to the DIN rail. Mount the DIN rail adapter
(UTA 107) as described in the figure. No additional mounting material is required. Fixing screws: Torx T10
(torque 0.8 - 0.9 Nm).
Connection, network forms 100...240 V AC networks
TN-S
L
N
PE
TN-C
L
PEN
TT
L
N
iT
L N PE
+ –
L N PE
+ –
L N PE
+ –
QUINT
QUINT
QUINT
L1
L2
L3
N
PE
L1
L2
L3
PEN
L1
L2
L3
N
L1
L2
L3
L N PE
+ –
L N PE
+ –
L N PE
+ –
L N PE
+ –
QUINT
QUINT
QUINT
QUINT
The 100-...240 V AC connection is established using the L,
N and PE screw connections.
The device can be connected to 1-phase AC networks or to
two of the phase conductors of three-phase systems (TN, TT
or IT networks in acc. with VDE 0100-300/IEC 60364-3) with
nominal voltages of 100 V AC ...240 V AC.
For operation on two of the phase conductors
of a three-phase system, an isolating facility for
all poles must be provided.
102549_00_en
PHOENIX CONTACT
9
